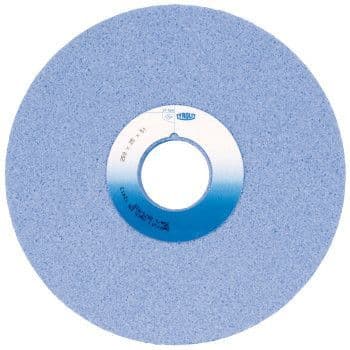

Diameter: 400 mm

Width: 50 mm

Bore or hole size: 127 mm

Shape: Plain sided

Specification:

• 454A 60 JV. Cooler cutting wheel for grinding hard to difficult to grind steels. Medium

Maximum RPM: 1670

Product Code: 664397

Manufactured for Abtec by Tyrolit in the EU.

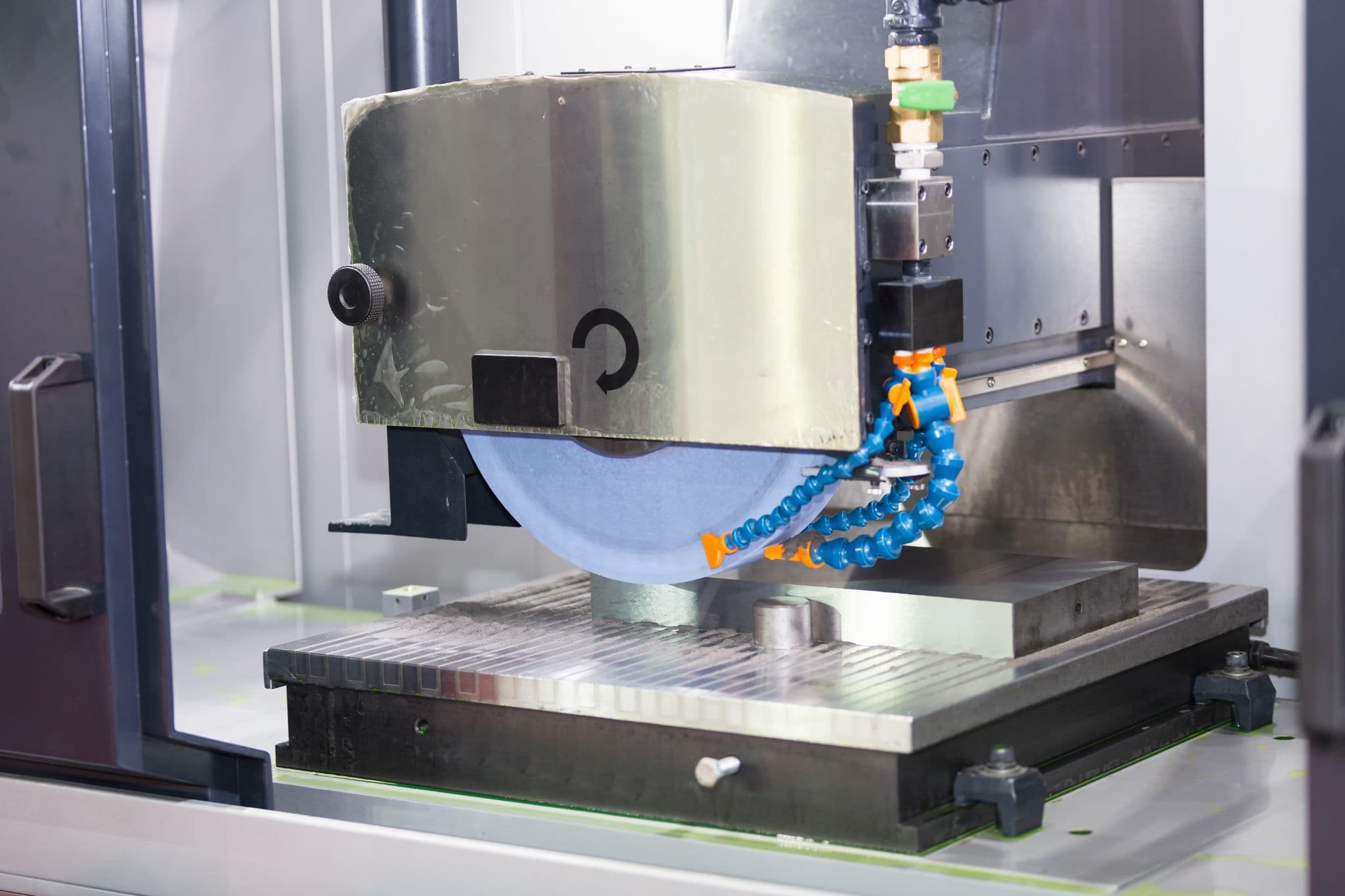

External cylindrical grinding effectively results in line contact between wheel and work, giving minimum grinding contact area. Increasing workpiece diameter relative to wheel diameter increases grinding contact area, resulting in different wheel specifications being required. Speeds and feeds will depend upon the power of the machine, workpiece material and finish required. The Abtec stock product range can be modified by machining recesses, peripheral shapes or changing the hole size and are modified to F.E.P.A. Safety Standards. Paper blotters will be supplied with each wheel.

• For your safety all Norton, Flexovit, Klingspor, Dronco, Tyrolit and Abracs grinding and cutting wheels conform to the 'Organisation for the Safety of Abrasives'. This requires members to manufacture and document abrasive products to the highest safety standards.
• You should ensure that you are fully informed on the safe operation of abrasive cutting and grinding wheels. More on training in the use of cutting and grinding wheels........
• Our Customer Services team is here to help with your inquiry for technical advice, bulk prices and non standard products. Click here to contact us now

Price per wheel.
