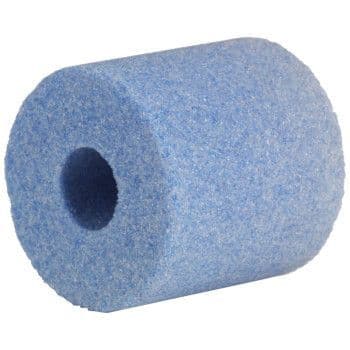

32 x 25 x 10 mm Tyrolit Ceramic Grinding Wheels
32 x 25 x 10 mm Tyrolit Ceramic Grinding Wheels
32 x 25 x 10 mm Tyrolit Ceramic Grinding Wheels
32 x 25 x 10 mm Tyrolit Ceramic Grinding Wheels

Product Description

Diameter: 32mm

Width: 25mm

Bore or hole size: 10mm

Shape: Type 1 Plain sided

Specification: 454A 80 IV Ceramic abrasive. Application: Internal grinding of difficult to grind or hard tool steels.

Maximum RPM: 20890

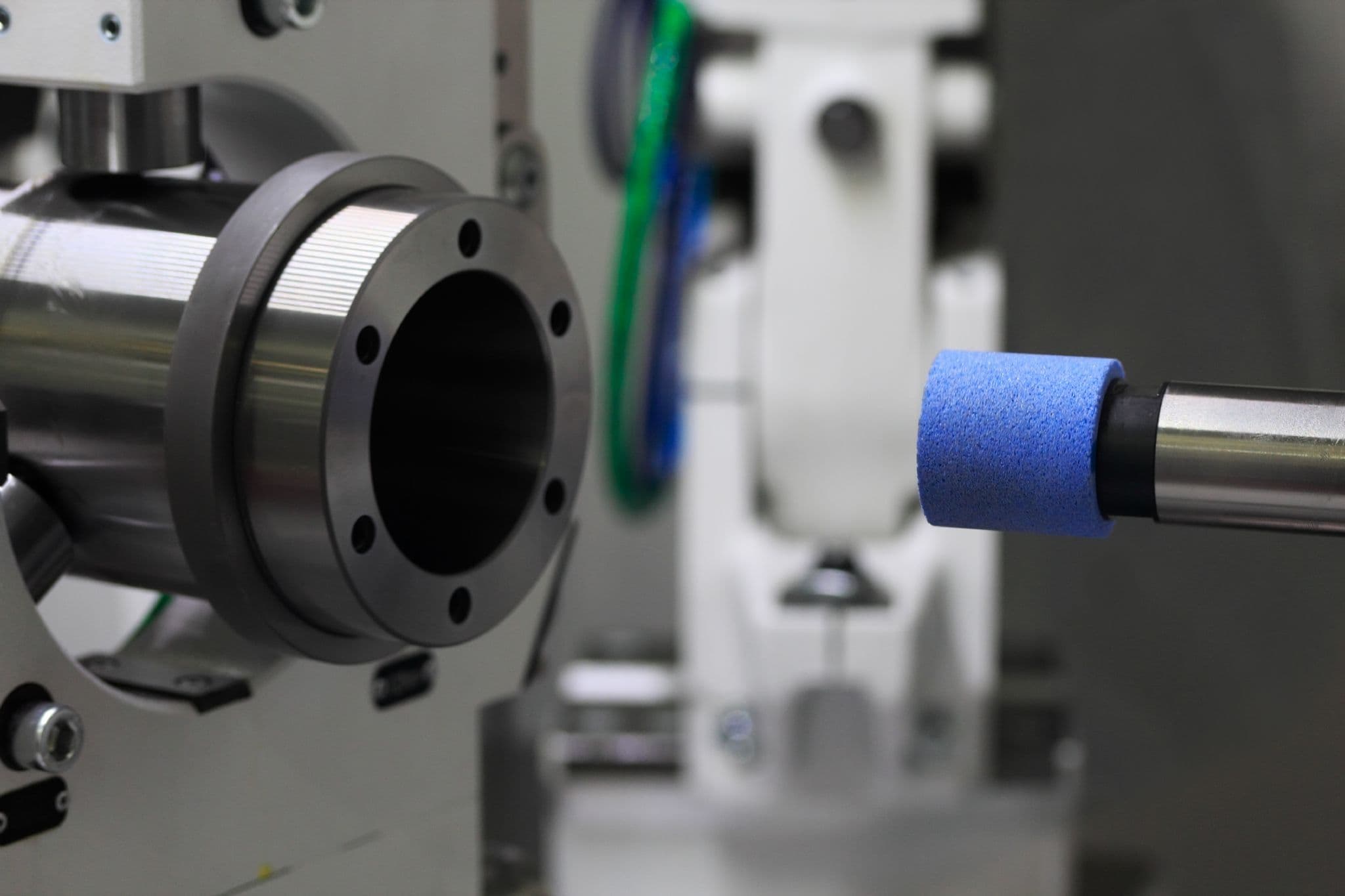

Because the workpiece is 'wrapped around' the wheel instead of going away from it internal grinding results in a larger contact area than in external cylindrical grinding. In general, this requires softer grade wheels to be used. The geometric relationship between the workpiece and the wheel can also restrict the flow of grinding fluid into the grinding zone and care should be taken in coolant application. As a general rule the wheel diameter should be approximately 75% of the diameter of the hole being ground. To avoid 'bellmouthing' of the component, only one-third of the wheel width should be allowed to pass out of each end of the hole being ground.

Specifications

BRAND
Tyrolit
MPN
664672
Product Code
664672
Weight
0.03kg

Customer reviews

No reviews left yet
Write A Review

Diameter: 32mm

Width: 25mm

Bore or hole size: 10mm

Shape: Type 1 Plain sided

Specification: 454A 80 IV Ceramic abrasive. Application: Internal grinding of difficult to grind or hard tool steels.

Maximum RPM: 20890

Because the workpiece is 'wrapped around' the wheel instead of going away from it internal grinding results in a larger contact area than in external cylindrical grinding. In general, this requires softer grade wheels to be used. The geometric relationship between the workpiece and the wheel can also restrict the flow of grinding fluid into the grinding zone and care should be taken in coolant application. As a general rule the wheel diameter should be approximately 75% of the diameter of the hole being ground. To avoid 'bellmouthing' of the component, only one-third of the wheel width should be allowed to pass out of each end of the hole being ground.
No reviews left yet
Write A Review

BRAND
Tyrolit
MPN
664672
Product Code
664672
Weight
0.03kg

Customer Reviews

32 x 25 x 10 mm Tyrolit Ceramic Plain Sided Grinding Wheel. Per 10

Item in Stock

Product Code 664672

Experience exceptional precision and efficiency with our 32 x 25 x 10 mm Tyrolit Ceramic Plain Sided Internal Grinding Wheel. Engineered with the highest quality materials, this grinding wheel is designed for smooth and accurate internal grinding. Its compact size of 32 x 25 x 10 mm allows for easy handling and precise grinding in tight spaces. Crafted by experts at Tyrolit, this wheel guarantees superior performance and durability, making it a must-have tool for any professional grinding job. Its ceramic construction provides exceptional heat resistance, ensuring longer wheel life. Whether you're looking to polish or grind, this wheel delivers unparalleled precision every time. With its plain sided design, it offers a versatile solution for internal grinding applications. Upgrade your grinding game with our Tyrolit Ceramic Plain Sided Internal Grinding Wheel and achieve impressive results with ease. Perfect for a wide range of materials including steel, stainless steel, and various alloys, this wheel is a staple for any skilled machinist. Improve your grinding process and achieve optimal results with Tyrolit.
