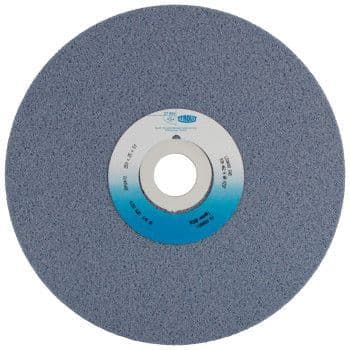

Diameter: 200 mm

Width: 20 mm

Bore or hole size: 51mm. Reducing bushes ( to reduce the bore of the wheel to the spindle size of the machine), when ordered with the wheel, are available free of charge in the following sizes: 1/2"(12.7mm), 5/8"(15.88mm), 3/4" (19.85mm), 7/8"(22mm), 1"(25.4mm) 1/1/4" (31.75mm).  Please choose from the drop down box.

Shape: Plain sided.

This wheel is available for modification including adding one or two recesses. Please click here for further details.

Maximum RPM: 3340

Specification:

• 97A 46 HV Application: This reciprocating grinding wheel can be used universally on all high-alloyed steels and HSS. This is achieved by using special aluminium oxides and mixtures with sintered aluminium oxides combined with special bond systems.

You should ensure that you are fully informed on the safe operation of abrasive cutting and grinding wheels. More on training in the use of cutting and grinding wheels........

For your safety all Tyrolit grinding and cutting wheels conform to EN12413. Tyrolit are also members of the 'Organisation for the Safety of Abrasives'. This requires members to manufacture and document abrasive products to the highest safety standards. More on 'The Organisation for the Safety of Abrasives'.

Price per wheel.
