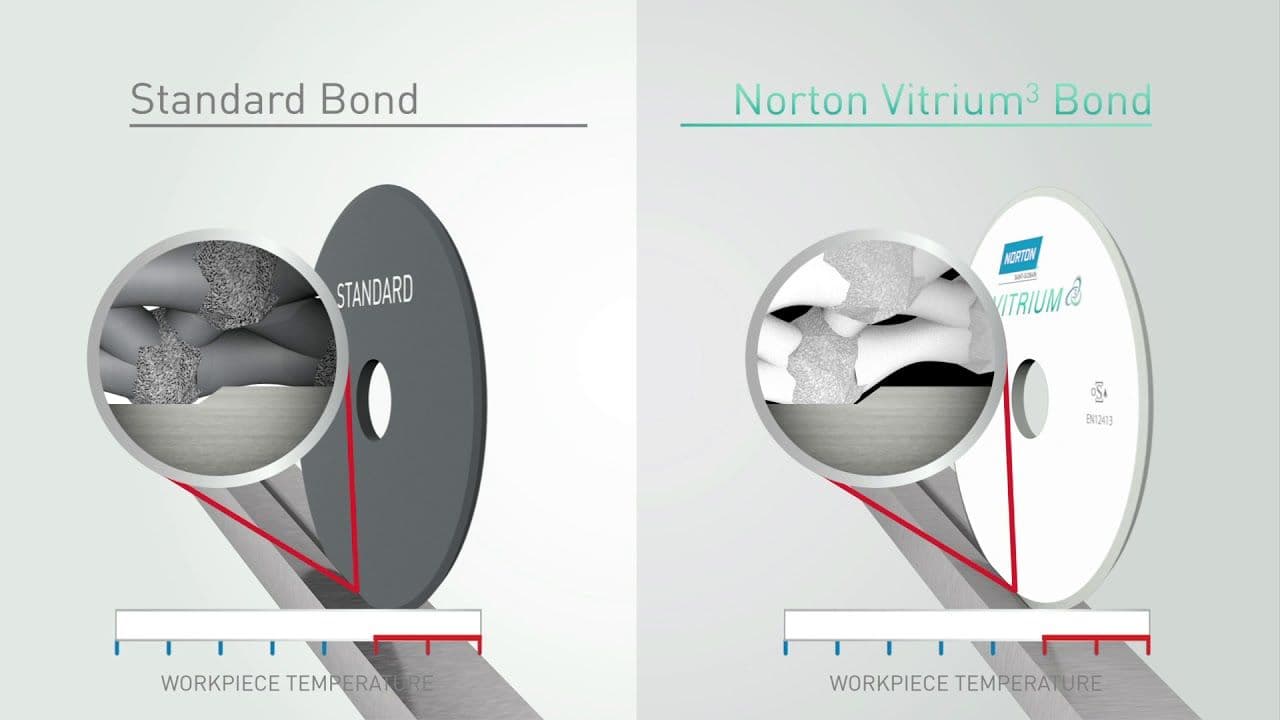

The Norton Vitrium3 bond platform features an exclusive chemistry that delivers an entirely new grain adhesion science, resulting in improved product versatility across a wide range of precision grinding applications. Provides cool cutting, precise profile, high speed and versatility.

SGB is a blend of abrasive with a low concentration of ceramic grain for good performance in a number of applications. Harder & sharper than conventional abrasive grains for good cutting capabilities. Very versatile for use on a number of steels. Suitable for low to medium power machines.

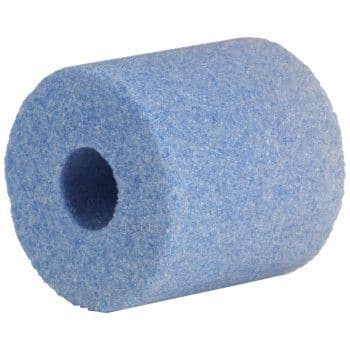

Diameter: 13 mm

Width: 13 mm

Bore or hole size: 4.76 mm

Shape: 1 Plain sided

Specification: SGB 60 J VS3. Application: Internal grinding of hard and very difficult to grind tool steels

Speed: 51420 RPM.

Product Code: 66253355176

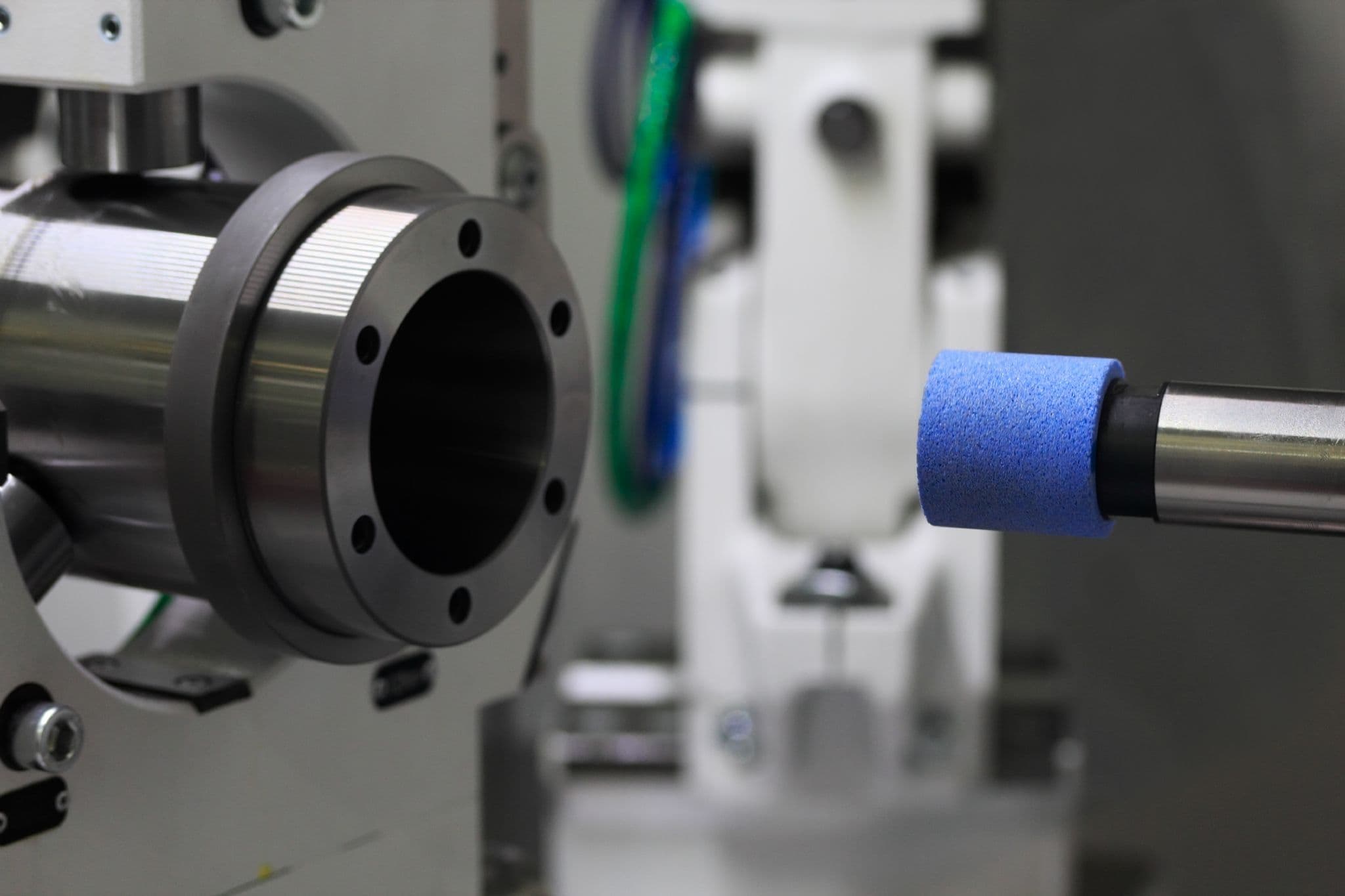

Because the workpiece is 'wrapped around' the wheel instead of going away from it internal grinding results in a larger contact area than in external cylindrical grinding. In general, this requires softer grade wheels to be used. The geometric relationship between the workpiece and the wheel can also restrict the flow of grinding fluid into the grinding zone and care should be taken in coolant application. As a general rule the wheel diameter should be approximately 75% of the diameter of the hole being ground. To avoid 'bellmouthing' of the component, only one-third of the wheel width should be allowed to pass out of each end of the hole being ground.

Price per wheel.

Manufactured by Norton in the EU.

• For your safety all Norton, Flexovit, Klingspor, Dronco, Tyrolit and Abracs grinding and cutting wheels conform to the 'Organisation for the Safety of Abrasives'. This requires members to manufacture and document abrasive products to the highest safety standards.
• You should ensure that you are fully informed on the safe operation of abrasive cutting and grinding wheels. More on training in the use of cutting and grinding wheels........
•  Learn more about grain types, bond hardness, reinforcement, production process and more by clicking here! Courtesy of St. Gobain Abrasives.
• Our Customer Services team is here to help with your inquiry for technical advice, bulk prices and non standard products. Click here to contact us now
