Product Description

Diameter: 13 mm

Width: 13 mm

Bore or hole size: 3.18 mm

Shape: Recessed one side 6 x 6mm

Specification: WA 60 LV. Application: Internal grinding of medium to hard steels.

Speed: 51420 RPM

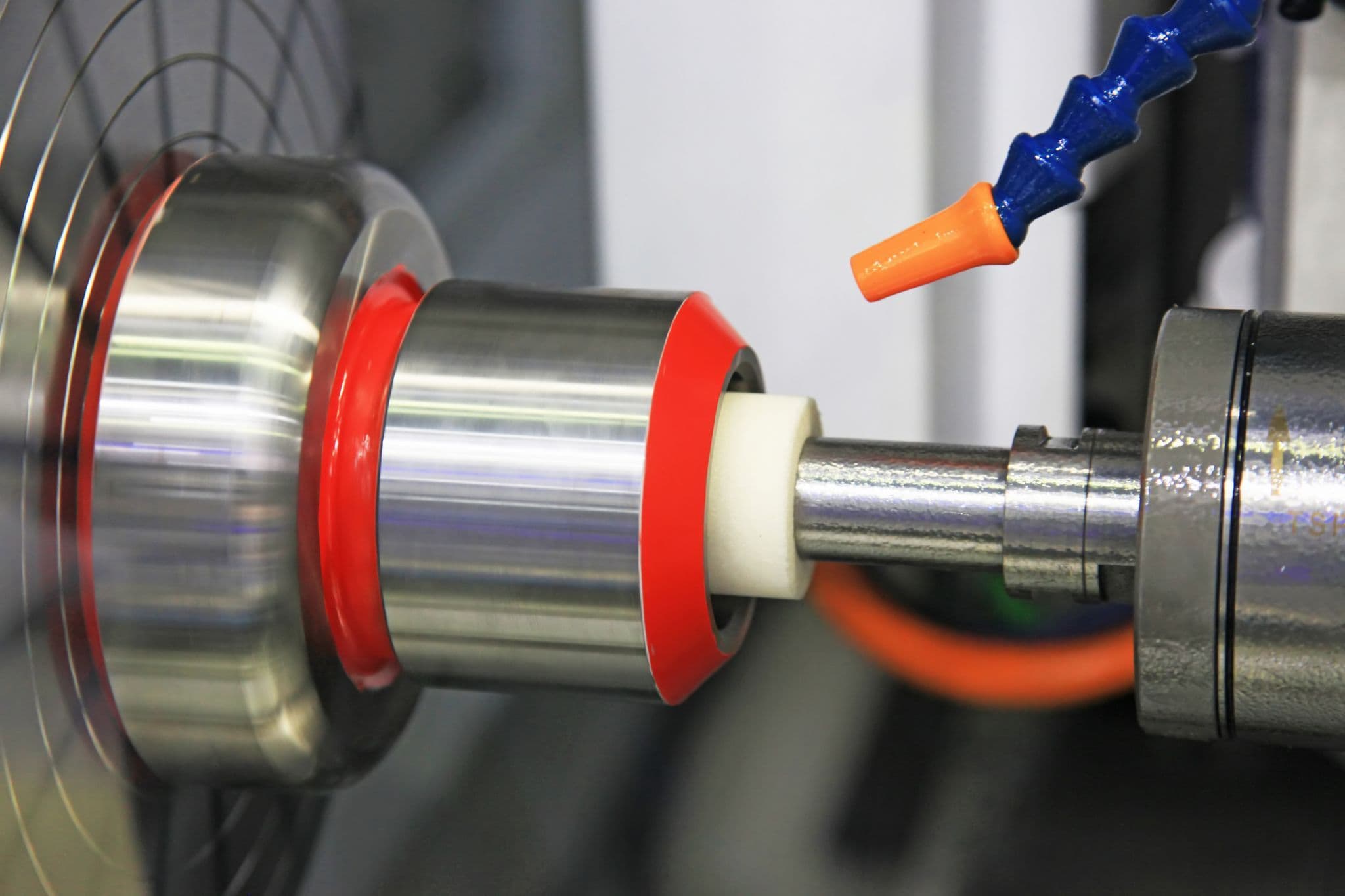

Because the workpiece is 'wrapped around' the wheel instead of going away from it internal grinding results in a larger contact area than in external cylindrical grinding. In general, this requires softer grade wheels to be used. The geometric relationship between the workpiece and the wheel can also restrict the flow of grinding fluid into the grinding zone and care should be taken in coolant application. As a general rule the wheel diameter should be approximately 75% of the diameter of the hole being ground. To avoid 'bellmouthing' of the component, only one-third of the wheel width should be allowed to pass out of each end of the hole being ground.

Price per 5 wheels.

More information? You can speak with one of our representatives free in the U.K. Monday-Friday between 8.30 a.m. and 5.00 p.m. on 0800 027 1928 or +44 (0) 1945 585500.



Specifications

BRAND
Norton
MPN
0130130293
Weight
0.05kg

Customer Reviews

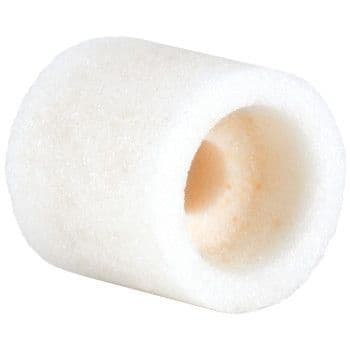

13 x 13 x 3.18 mm Norton Recessed Grinding Wheel WA 60 LV Per 5.

Out of stock

Introducing our top-of-the-line 13 x 13 x 3.18 mm Recessed WA 60 LV Internal Grinding Wheels. Crafted with precision and expertise, these grinding wheels are the ultimate tool for your internal grinding needs. Built to fit seamlessly into your tool kit, these wheels boast a compact size of 13 x 13 x 3.18 mm, making them perfect for tight spaces.

Expertly designed for optimal performance, these internal grinding wheels feature a recessed design, allowing for enhanced accuracy and control while in use. The WA 60 LV material adds an extra layer of durability, ensuring a long-lasting and efficient grind every time.

Whether you're a professional in need of a reliable grinding solution or a DIY enthusiast looking for the best tools to get the job done, our 13 x 13 x 3.18 mm Recessed WA 60 LV Internal Grinding Wheels are the perfect choice. So why wait? Elevate your grinding game with our expertly crafted wheels today.

And with its optimized keywords, such as "internal grinding wheels" and "WA 60 LV", our product description is easily searchable, meaning you can find the perfect tool for your project in no time. Trust in our expertise and upgrade your grinding game with our top-quality internal grinding wheels. Order now and experience the difference for yourself!
